Front Flitch Profile Checking Fixture made for trucks which is very crucial and maintained flawless trim-line. Checking Gap is 3mm with an assurance of 0.05 tolerance accuracy checked by CMM
Critical Point: 5 Axis Machining & Negative angle profile
Size : 1330×600
Material : Aluminum
Total Fixtures:63
Duration: 3 Months

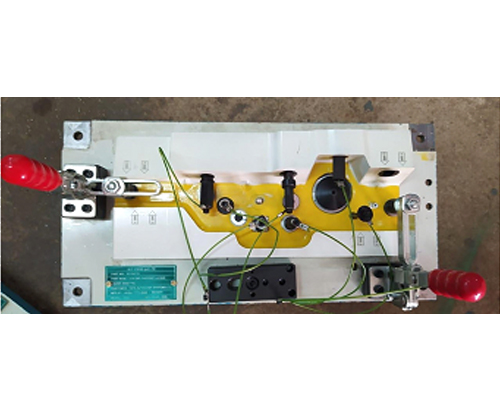

2nd Cross Member Profile Checking Fixture, a challenging design but met the customer requirement. Checking Gap – Side Face : 0.5mm, Bottom face : 3mm with an assurance of 0.05 tolerance accuracy checked by CMM
Critical Point: 5 Axis Machining & Negative angle profile
Size : 350X250
Material : Aluminum
Total Fixtures:12
Duration: 1 Months
Gear Box Cross Member Top Profile Checking Fixture made for trucks with a checking gap of 3mm & with an assurance of 0.05 tolerance accuracy checked by CMM
Critical Point: 5 Axis Machining & Negative angle profile
Size : 350X250
Material : Aluminum
Total Fixtures:12
Duration: 1 Months

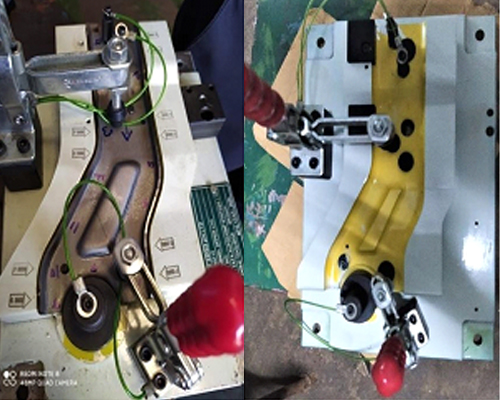

Tunnel Bracket Profile Checking Fixture made for trucks with a checking gap of 3mm & with an assurance of 0.05 tolerance accuracy checked by CMM
Toggle clamps play a vital role in holding the part right at the datum area.
Size : 300×250
Material : Aluminum
2nd Cross Member Profile Checking Fixture Checking Gap – Side Face : 0.5mm & Bottom face: 3mm with an assurance of 0.05 tolerance accuracy checked by CMM
Critical Point: Side Face 5 Axis Machining & Negative angle profile
Size : 400X250
Material : Aluminum
Total Fixtures : 12
Duration : 1Month

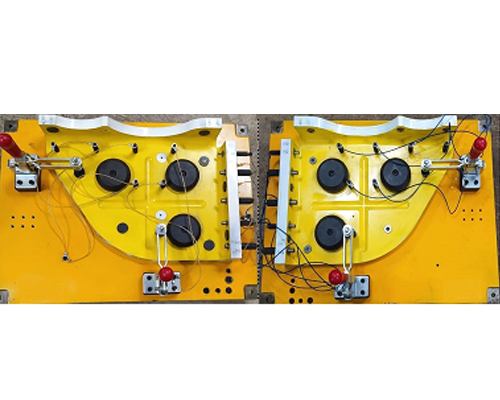

Urea Tank Bracket (LH&RH) Profile Checking Fixture and the Checking Gap is 3mm with an assurance of tolerance accuracy checked by CMM
Heavy round pins been used in this fixture for BS6 project we did almost 18 fixtures within a short of time of around 1 month
Size : 500X450
Material : Aluminum
Total Fixtures : 18
Duration : 1Month
